Creating
space,|elegant,|and efficiently
AluSpace Interior Screening System
The AluSpace Interior Screening System has been developed to create light and airy internal environments. The system’s sleek and elegant lines perfectly complement our window and door ranges.
AluSpace can be used to divide or delineate both residential and commercial spaces of any shape and size, while at the same time providing an effective acoustic barrier.
With a choice of hinged single and double doors, as well as pivot and sliding options to accompany the fixed glazed screen, the flexible and versatile system provides almost limitless design possibilities.
The elegant system requires only minimal maintenance, with the high quality design providing many years of assured, reliable performance.
Divide or delineate internal space
* Elegant, slim design style
* Hugely versatile and flexible system
* High quality manufacture
* Low maintenance

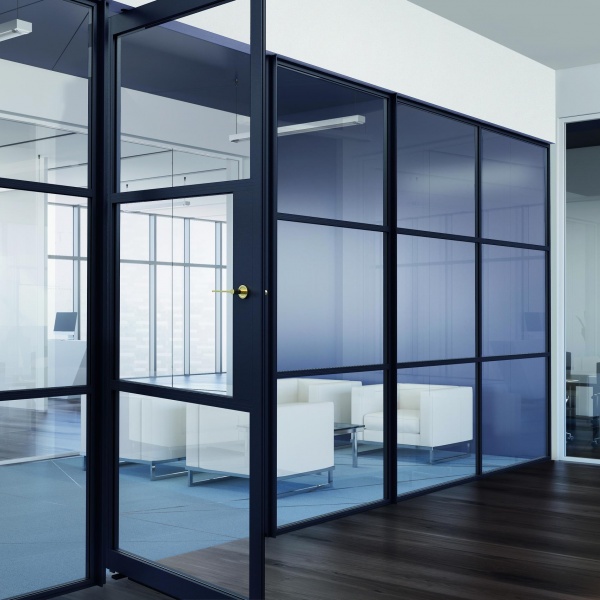

Pivot Doors
Our pivot screen options provides the flexibility to instantly change the way the internal space is configured. Available up to 2 metres wide and with standard or soft close options.
PIVOT DOOR SASH DESIGN LIMITATIONS | |
---|---|
MAXIMUM WIDTH (MM) | 2000 |
MINIMUM WIDTH (MM) | 400 |
MAXIMUM HEIGTH (MM) | 2500 |
MAXIMUM WEIGHT (KG) | 100 |
DOOR | SINGLE |
GLAZING (MM) | 6, 8 OR 18 |
COLOUR | SINGLE COLOUR |
Fixed Screens
AluSpace fixed sceens give architects and interior designers the opportunity to elegantly partition living or working spaces.
FIXED SCREEN DESIGN LIMITATIONS | |
---|---|
MAXIMUM WIDTH (MM) | 1400 |
MAXIMUM HEIGTH (MM) | 2500 |

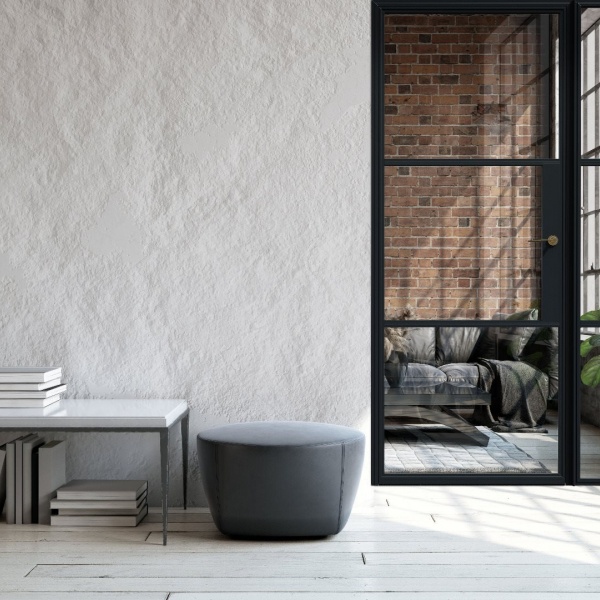

Hinged Doors
With a range of width, glazing, hinge and furniture options, our doors can be configured to suit any design theme, from traditional to minimalist and contemporary to industrial.
HINGED DOOR SASH DESIGN LIMITATIONS | |
---|---|
MAXIMUM WIDTH (MM) | 900 |
MINIMUM WIDTH (MM) | 400 |
MAXIMUM HEIGTH (MM) | 2300 |
MAXIMUM WEIGHT (KG) | 160 |
DOOR | SINGLE OR DOUBLE |
GLAZING (MM) | 6, 8 OR 18 |
COLOUR | SINGLE COLOUR |

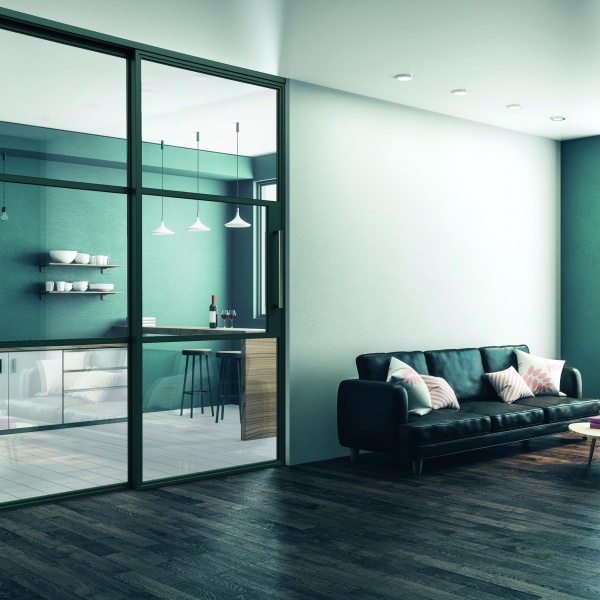

Sliding Doors
Sliding doors provide the option to close or partially open the internal screen, with a choice of a contemporary or vintage rail options to echo the overall design.
SLIDING DOOR SASH DESIGN LIMITATIONS | |
---|---|
MAXIMUM WIDTH (MM) | 1200 |
MINIMUM WIDTH (MM) | 400 |
MAXIMUM HEIGTH (MM) | 2500 |
MAXIMUM WEIGHT (KG) | 100 (WITH ACINT313 ROLLERS) |
DOOR | SINGLE |
GLAZING (MM) | 6, 8 OR 18 |
COLOUR | SINGLE COLOUR |
